Aspire Revvo Sub-Ohm Tank
Final Stock – Limited Units Available
Discontinued Model – No Restock After Sold Out
✔ Ships from US ✔ Fast Delivery

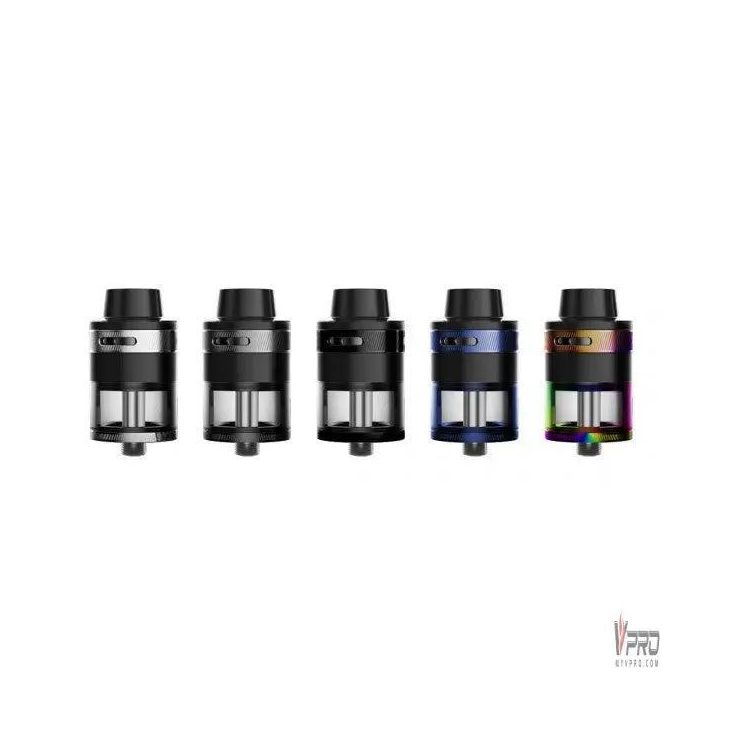

Aspire Revvo Sub-Ohm Tank
The Aspire Revvo Sub-Ohm Tank is a highly innovative, flavor-focused sub-ohm tank that introduces a completely rewritten paradigm in atomizer coil design. Moving away from traditional vertical or horizontal cylinder coils, the Revvo premieres the pioneering ARC (Aspire Radial Coil) technology, utilizing a flat, stovetop-like radial mesh disc that sits horizontally above the tank reservoir to produce immense cloud volume and exceptional flavor layer transitions.
Constructed from high-grade stainless steel and Pyrex glass, the tank boasts a generous 3.6ml e-liquid capacity (2.0ml TPD edition available). It features an incredibly clever spring-loaded central filling tube accessible directly through the mouthpiece, allowing you to drip juice down without unthreading any caps. Paired with a fully adjustable top airflow slot, the Revvo eliminates leaking while maximizing air-to-coil cooling for a premium Direct-Lung (DL) experience.
Key Features
-
Revolutionary ARC Coil Tech: Horizontal flat-disc radial mesh grid provides a massive surface area for ultra-dense vapor and extended coil life.
-
Spring-Loaded Top Filling: Innovative central check-valve tube enables direct bottle filling straight down the drip tip, sealing automatically after refilling.
-
Leakproof Top Airflow Control: Adjustable dual slotted top airflow rings pull fresh air down across the flat heating elements to stop spit-back and leakage.
-
Massive 3.6ml Juice Capacity: Transparent Pyrex glass structure holds ample e-liquid, accompanied by a protective silicone cap inside the packaging.
-
Premium DL Performance: Optimizes full-open airflow delivery, making it the perfect choice for high-wattage box mod cloud chasers.
Specification Table
| Specification | Details |
|---|---|
|
Brand |
Aspire |
|
Product Name |
Revvo Sub-Ohm Tank |
|
Dimensions |
45mm × 24mm |
|
Tank Capacity |
3.6ml (Standard Edition) / 2.0ml (TPD Edition) |
|
Chassis Material |
Premium Stainless Steel + Pyrex Glass Tube |
|
Coil Technology |
ARC (Aspire Radial Coil) Horizontal Grid |
|
Coil Resistance Range |
0.10Ω - 0.16Ω Kanthal AF (Optimal at 50W - 100W) |
|
Refilling Style |
Spring-Loaded Center Fill Port (Top-Fill) |
|
Threading Pin |
Standard 510 Connection |
Packing List
-
1 × Aspire Revvo Sub-Ohm Tank (3.6ml)
-
2 × ARC Coils (0.10Ω - 0.16Ω, 1 × Pre-installed)
-
1 × Replacement Pyrex Glass Tube
-
10 × Spare Silicone O-Rings Pack
-
1 × Protective Silicone Top Cap
-
1 × User Manual & Guideline Card
-
1 × Warranty Card
FAQ
Q: How do I fill the Aspire Revvo tank with e-liquid?
A: There is no need to unscrew or slide anything open. Take your e-liquid dropper or bottle tip and press it straight down into the silver, spring-loaded tube located directly inside the wide-bore mouthpiece. Squeeze your bottle to fill, and the valve will automatically spring back up to lock and seal once you remove the bottle tip.
Q: How does the e-liquid saturate the flat horizontal ARC coil?
A: Because the horizontal radial mesh disc sits above the main e-liquid reservoir, you simply tilt or turn the device upside down for a quick second before taking a puff. This motion washes e-liquid across the organic cotton lining underneath the mesh sheet to ensure perfect saturation.
Q: What wattage range works best for the ARC coils?
A: The pre-cut Kanthal AF radial mesh coils have an active resistance between 0.10Ω and 0.16Ω. They are designed to operate excellently at high wattages, with the manufacturer's sweet spot recommended between 50W and 100W (optimal at 80W - 85W).
