Cartisan The Inspector 510 Battery
Final Stock – Limited Units Available
Discontinued Model – No Restock After Sold Out
✔ Ships from US ✔ Fast Delivery

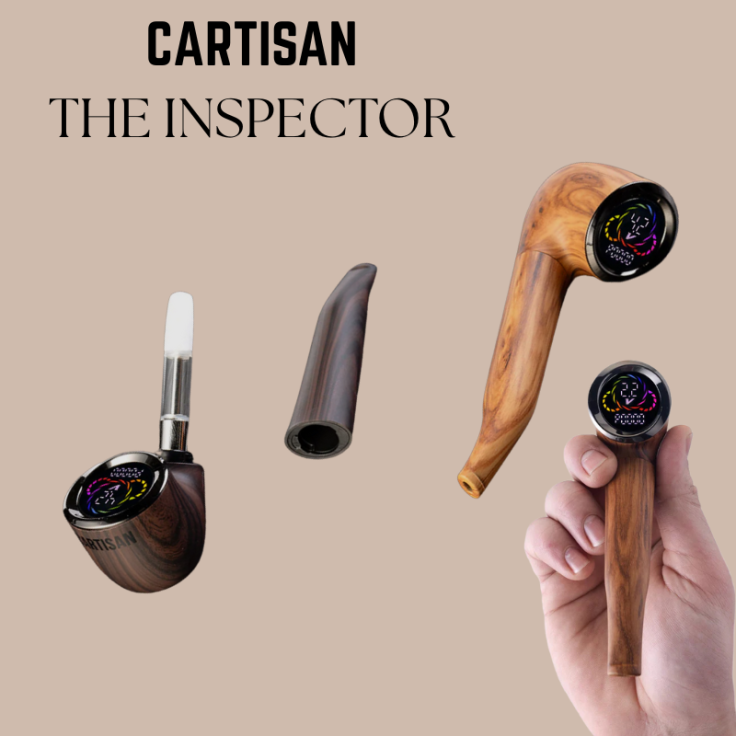

Cartisan The Inspector 510 Battery
The Cartisan The Inspector 510 Thread Battery is a unique cartridge vape that combines a vintage look with modern technology. Shaped like a classic Sherlock pipe with a smooth wood-grain finish, it features a hidden compartment that encloses and protects your 510-threaded oil cartridges. Powered by a built-in 650mAh battery, the device includes an interactive screen to track your settings and offers adjustable voltage control to easily customize your vaping experience.
Key Features
-
Sherlock Pipe-Style Frame: Classic wood-grain aesthetic delivers a retro feel while remaining ergonomic and pocket-safe.
-
Concealed Cartridge Chamber: Encloses 510-thread carts completely out of view, protecting them from damage.
-
Wide Variable Voltage: Adjusts from 1.8V to 4.2V in precise 0.1V steps to customize flavor profiles and cloud density.
-
Dual Activation Support: Fires seamlessly using simple breath auto-draw or manual button control.
-
Interactive Digital Screen: Bright display screen tracks your current power setting, battery life, and overall puff count.
-
Integrated Pre-Heat Function: Uses a low-temperature constant 1.8V output to liquefy thick oils and clear cold clogs.
|
Attribute |
Specification |
|---|---|
|
Brand |
Cartisan |
|
Product Name |
The Inspector |
|
Design Style |
Retro Sherlock Pipe |
|
Dimensions |
135.2mm × 87.25mm × 40.3mm |
|
Battery Capacity |
Built-in 650mAh |
|
Output Voltage Range |
1.8V – 4.2V (Adjustable in 0.1V increments) |
|
Preheat Setting |
1.8V Constant for 8 Seconds |
|
Cartridge Compatibility |
Most 510-thread cartridges (Fits up to 2G sizes) |
|
Maximum Cartridge Size |
Ø 14mm × 62mm |
|
Minimum Resistance |
0.8 Ω |
|
Activation Method |
Dual Mode: Inhale Auto-Draw or Manual Button Firing |
|
Display Panel |
LCD Digital Screen (Voltage, Battery %, Puff Counter) |
|
Charging Interface |
USB Type-C (5V / 0.5A) |
|
Safety Protections |
Short-Circuit, Overcurrent (>0.8Ω check), 10s Overtime, Low Voltage |
FAQ
Q: How do I adjust the voltage on The Inspector?
A: Press the power button 3 times within 1.5 seconds to enter adjustment mode. Each subsequent press will increase the power by 0.1V within the 1.8V–4.2V spectrum.
Q: How do I trigger the pre-heat feature?
A: Click the power button 2 times within 1.5 seconds. The device will warm up thick extracts at a constant 1.8V setting for 8 seconds to clear clogging.
Q: What size cartridges will fit inside the concealed chamber?
A: The hidden compartment fits most standard 510-threaded cartridges up to 2 grams in volume, accommodating maximum dimensions of 14mm in diameter and 62mm in length.
Q: How do I turn the battery on or off?
A: Click the primary power button 5 times rapidly within 1.5 seconds to safely activate or lock down the system.
