Geek Vape N80 Alpha Braid Coil 2 in 1
Geek Vape N80 Alpha Braid Coil 2 in 1

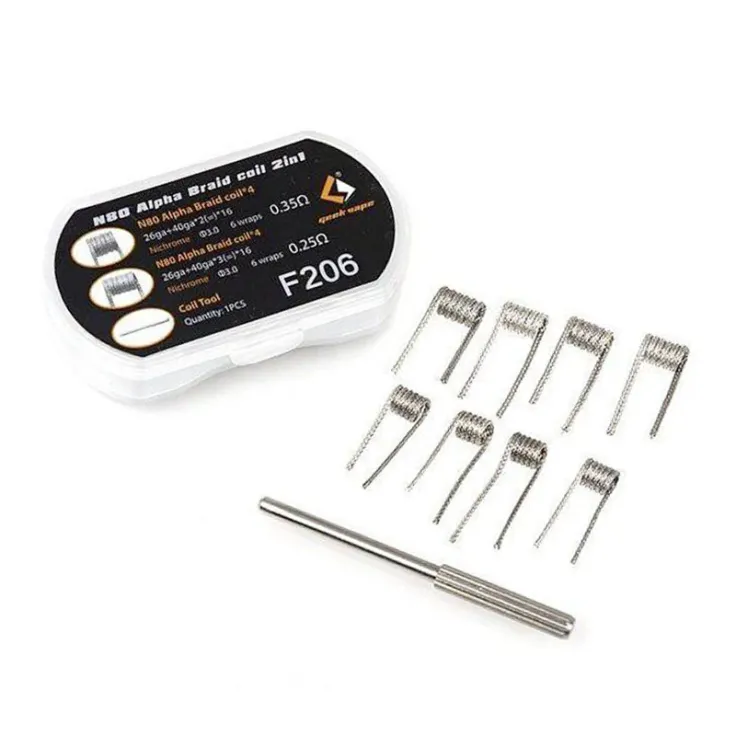

The GeekVape N80 Alpha Braid Prebuilt Coil 2-in-1 Pack is a premium multi-spec hardware kit curated for advanced rebuildable atomizer users. Crafted entirely from premium Nichrome 80, these multi-strand braided coils are designed to maximize surface area contact with your cotton. The pack bundles two distinct Alpha Braid configurations (0.25Ω and 0.35Ω) along with a stainless steel coil building tool. Nichrome 80 wire significantly lowers ramp-up time compared to traditional Kanthal, offering instantaneous cloud production, linear heat distribution, and enhanced crispness for multi-layered e-liquids.
Key Features
-
Advanced Braided Structure: Intricate cross-woven multi-strand braids offer immense surface coverage to capture deep flavor notes.
-
Rapid N80 Performance: Premium Nichrome 80 wire provides ultra-fast heating times and can safely withstand higher wattages.
-
Two Configurations Included: A versatile 2-in-1 layout offers distinct resistances to fine-tune your vapor density and warmth.
-
Anti-Carbon Build: High-grade metal processing helps reduce rapid carbon deposits, extending the lifespan of each coil.
-
Bonus Building Tool: Comes packaged with a dual-diameter stainless steel coil sizing rod to simplify installation and positioning.
Specification Table
| Attribute | Specification |
|---|---|
|
Brand |
GeekVape |
|
Material Type |
Nichrome 80 (N80) for Coils / Stainless Steel for Tool |
|
Total Coil Count |
8 Prebuilt Coils per Box Set |
|
Coil Type A (4pcs) |
26ga + 40ga*2(=)*16 | 0.35Ω | 3.0mm Inner Diameter | 6 Wraps |
|
Coil Type B (4pcs) |
26ga + 40ga*3(=)*16 | 0.25Ω | 3.0mm Inner Diameter | 6 Wraps |
|
Coil Sizing Tool |
Dual stepped rod (3.0mm and 4.0mm sections) |
|
Atomizer Pairing |
RDAs, RTAs, and RDTAs with sub-ohm capabilities |
FAQ
Q: What is the benefit of a braided wire structure over a regular round wire?
Braided wires feature microscopic pockets across their surface. This allows the coil to trap and vaporize more e-liquid simultaneously, resulting in richer flavor and thicker vapor.
Q: Can I use these coils in a dual-coil build deck?
Yes. However, installing two identical coils halves the overall resistance. A dual setup of the 0.35Ω coils drops to around 0.17Ω, while the 0.25Ω coils drop to roughly 0.12Ω. Make sure your device can safely fire low resistances.
Q: Do these coils require dry-burning before adding cotton?
Yes. After mounting them, pulse your device at a low wattage (20W–30W). Gently strum the wraps with ceramic tweezers to remove hot spots until the coil glows evenly from the inside out.
Q: Are these coils compatible with temperature control (TC) mode?
No. Nichrome 80 does not have a high enough temperature resistance change for devices to measure accurately. These coils must be used strictly in standard Wattage (Power) or Bypass modes.
