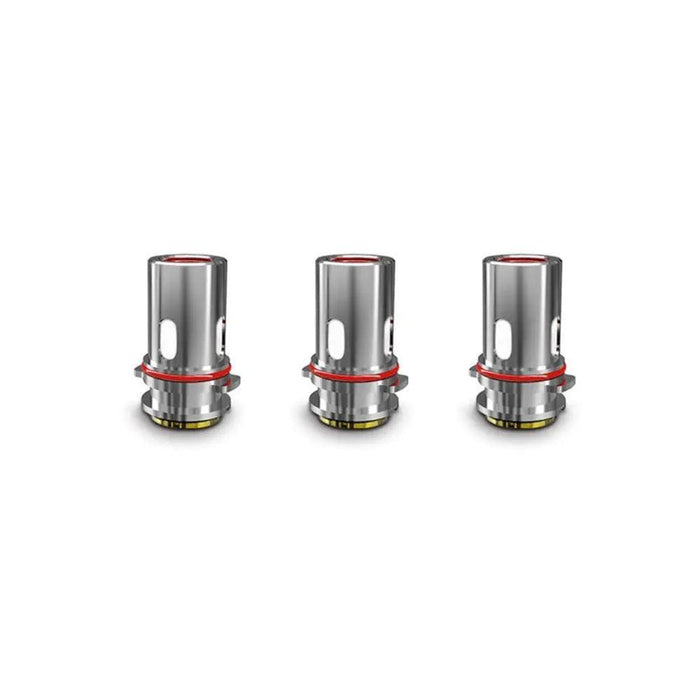

Horizon SAKERZ Replacement Coils
Horizon SAKERZ Replacement Coils
The Horizon SAKERZ Replacement Coils are official atomizer heads for the HorizonTech SAKERZ Sub-Ohm Tank and SAKERZ Master Tank, sold three to a pack. The standout build here is the 0.17Ω 2-in-1 mesh coil, which stacks two mesh heating elements inside a single head to increase the total vaporising surface area — the result is a faster ramp-up and noticeably denser vapor than a comparable single-mesh coil at the same wattage. All three builds use wood pulp cotton wicking, which absorbs e-liquid quickly and evenly, helping avoid the dry patches that cause early burnout. Installation is press-fit — the coil pushes into the tank base with no threading. Available in 0.16Ω and 0.17Ω for 70W high-output vaping, or 0.4Ω for a cooler, more economical 40W draw.
Coil Comparison
| 0.16Ω Mesh | 0.17Ω 2-in-1 Mesh | 0.4Ω Mesh | |
|---|---|---|---|
| Rated Wattage | 70W | 70W | 40W |
| Build | Single mesh | Dual stacked mesh | Mesh |
| Character | Warm, heavy vapor | Fastest ramp-up, densest clouds | Cooler, smoother, more economical |
| Best For | High-wattage cloud chasing | Maximum vapor output | Lower-power mods, longer battery life |
Key Features
- 3 Coils Per Pack — official HorizonTech
- Three Resistances — 0.16Ω, 0.17Ω and 0.4Ω
- 2-in-1 Mesh Technology on the 0.17Ω — dual stacked heating elements
- Wood Pulp Cotton Wicking — fast, even e-liquid absorption
- Press-Fit Installation — no threading required
- Direct-Lung Optimised
- Fits SAKERZ Sub-Ohm Tank and SAKERZ Master Tank
Specification Table
| Spec | Details |
|---|---|
| Brand | HorizonTech |
| Product | SAKERZ Replacement Coils |
| Quantity | 3 per pack |
| Resistances | 0.16Ω / 0.17Ω / 0.4Ω |
| Coil Type | Mesh (0.17Ω is 2-in-1 dual mesh) |
| 0.16Ω Wattage | 70W |
| 0.17Ω Wattage | 70W |
| 0.4Ω Wattage | 40W |
| Wicking | Wood Pulp Cotton |
| Installation | Press-Fit |
| Draw Style | Direct-Lung (DTL) |
| Compatible Tanks | HorizonTech SAKERZ Sub-Ohm Tank, SAKERZ Master Tank |
What's Included
- 3 × Horizon SAKERZ Replacement Coils (resistance of your choice)
FAQ
Q: Which tanks do these coils fit?
A: The HorizonTech SAKERZ Sub-Ohm Tank and the SAKERZ Master Tank. They will not fit other HorizonTech tanks such as the Falcon or Aquila, which use their own coil series.
Q: What does "2-in-1 mesh" actually mean?
A: The 0.17Ω coil houses two mesh strips inside one head instead of one. More heating surface in contact with the wick means it ramps up faster and produces more vapor per puff than a single-mesh coil of similar resistance.
Q: Which resistance should I pick?
A: If your mod can comfortably run 70W, the 0.17Ω 2-in-1 gives the biggest vapor output and the 0.16Ω is a close second with a slightly warmer draw. Choose the 0.4Ω if you're running a lower-power mod, want longer battery life between charges, or prefer a cooler vape that goes easier on e-liquid.
Q: How do I change the coil?
A: Unscrew the tank base, pull the old coil out (a wrench or the base itself helps if it's stuck), press the new coil straight into the chamber, check all O-rings are seated, then screw the base back on.
Q: Do I need to prime a new coil?
A: Yes — this is the single biggest cause of burnt coils. Drip e-liquid directly onto the cotton ports through the side of the coil, fill the tank, then let it stand ten minutes before your first puff. Start below the rated wattage and work up over the first tank.
Q: What e-liquid should I use?
A: High-VG freebase e-liquid, typically 70VG/30PG or thicker, at low nicotine strength — usually 3mg or 6mg. Do not use nicotine salts in these coils; at 70W the nicotine delivery would be far too harsh.
Q: How long does a coil last?
A: Usually one to two weeks with regular use. Heavily sweetened or dark e-liquids caramelise on the mesh and can cut that down to a few days.
Q: Why is my flavor fading?
A: Sweetener buildup on the mesh is the usual culprit, and it's not reversible — replace the coil. If flavor drops off within days rather than weeks, switch to a less sweetened e-liquid.
