Vaporesso Armour MAX 220W Starter Kit

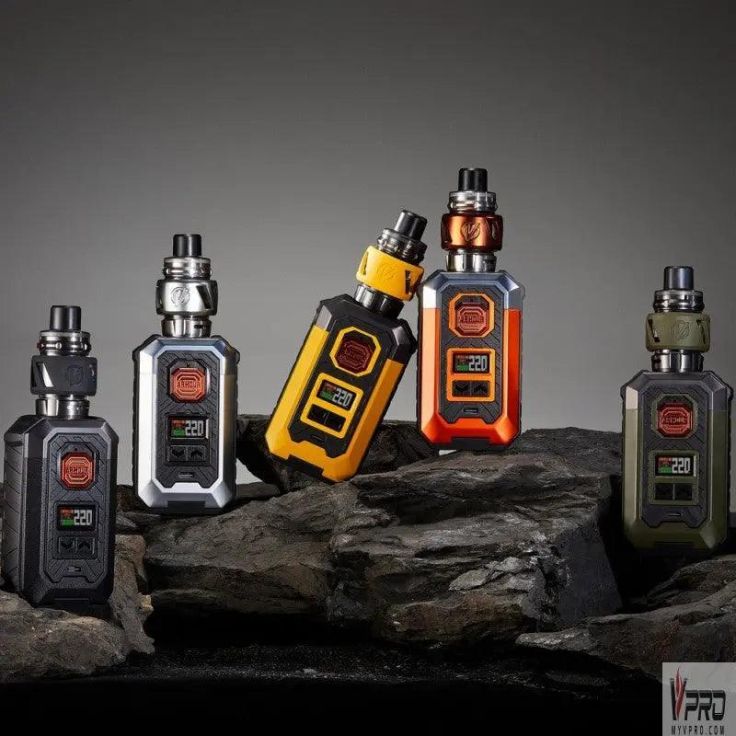

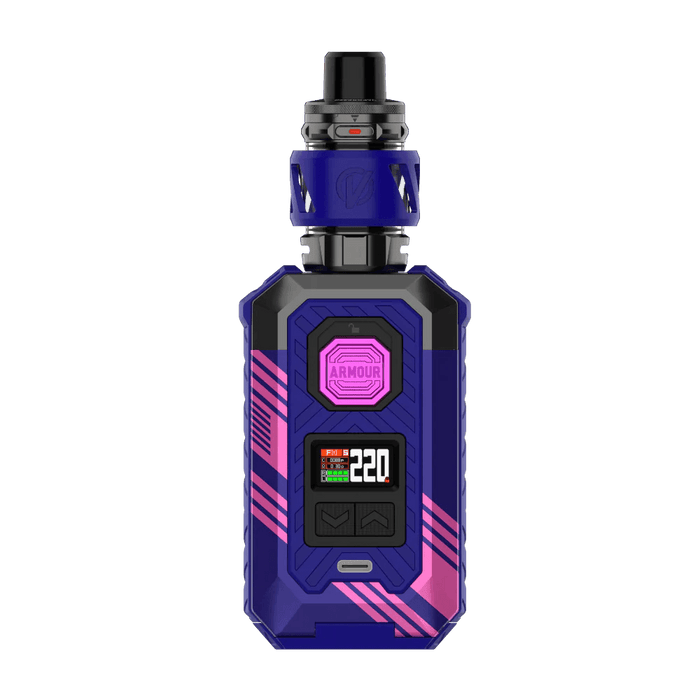

Vaporesso Armour Max 220W Starter Kit

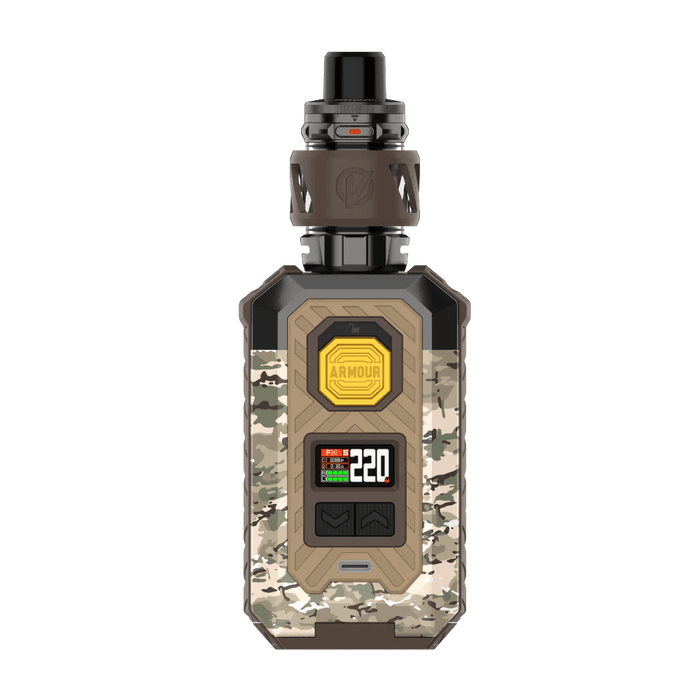

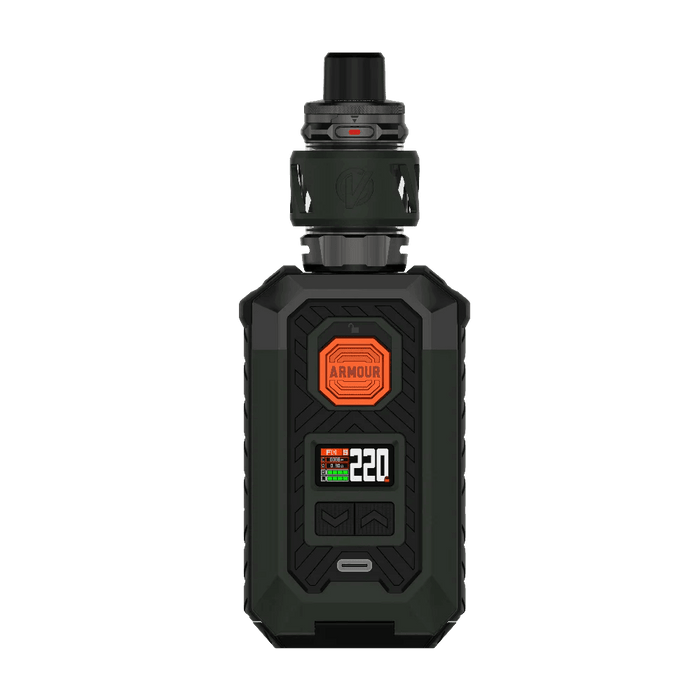

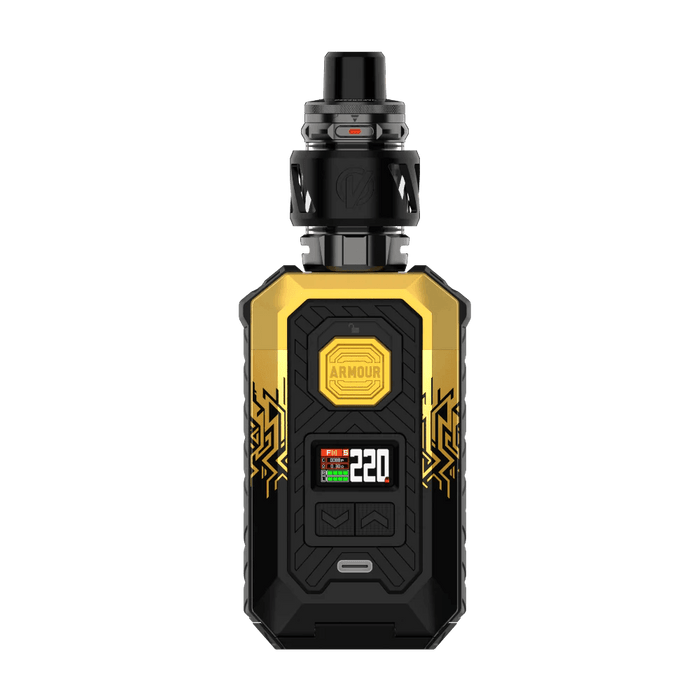

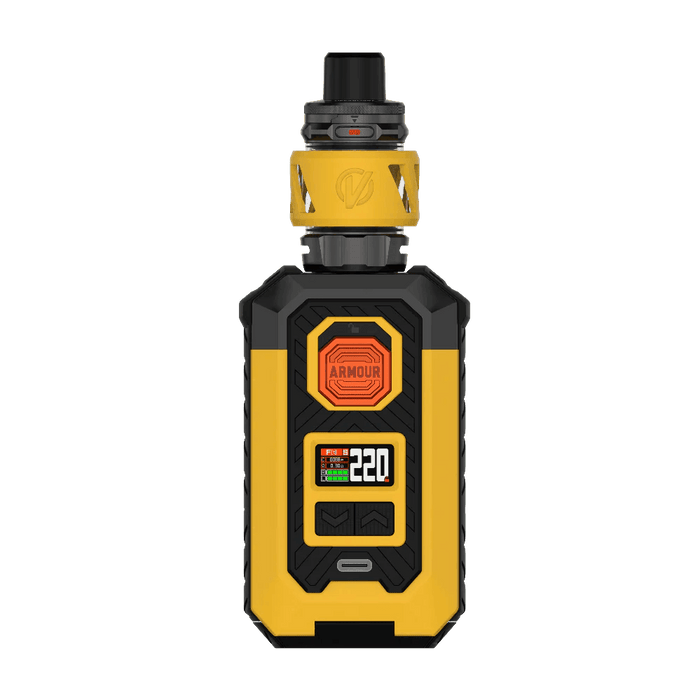

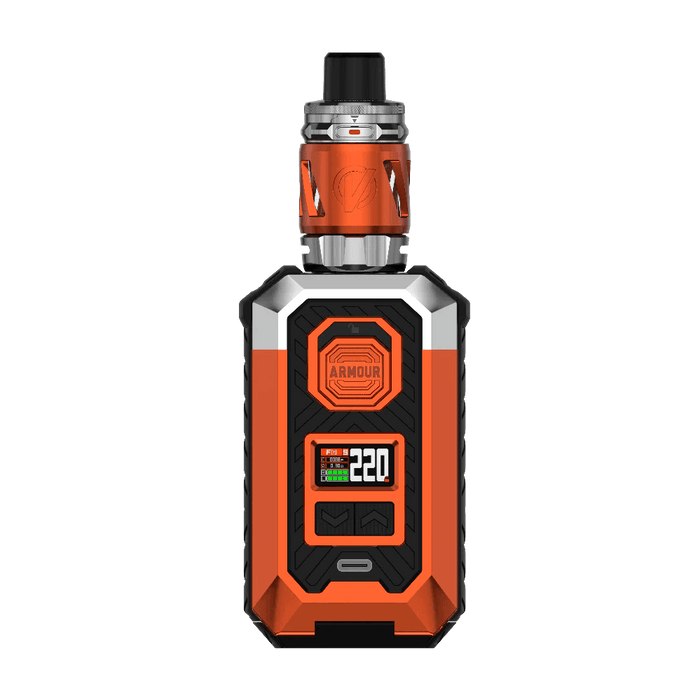

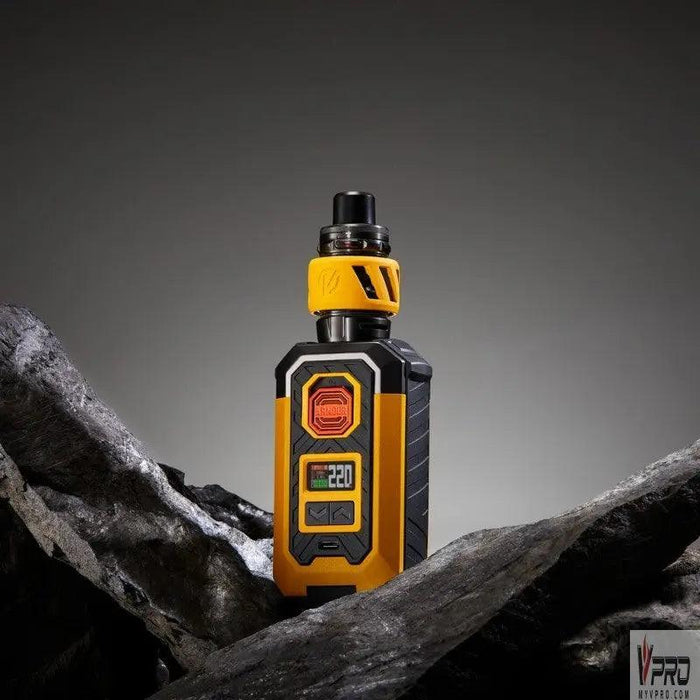

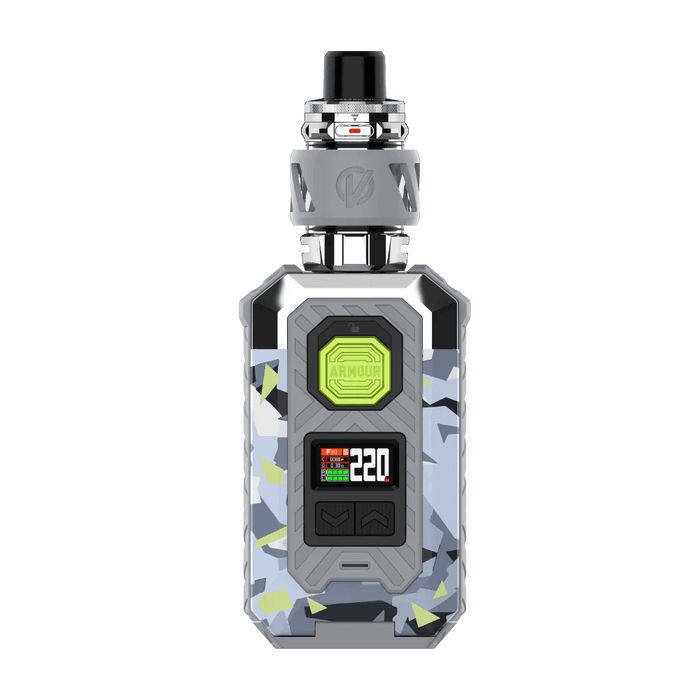

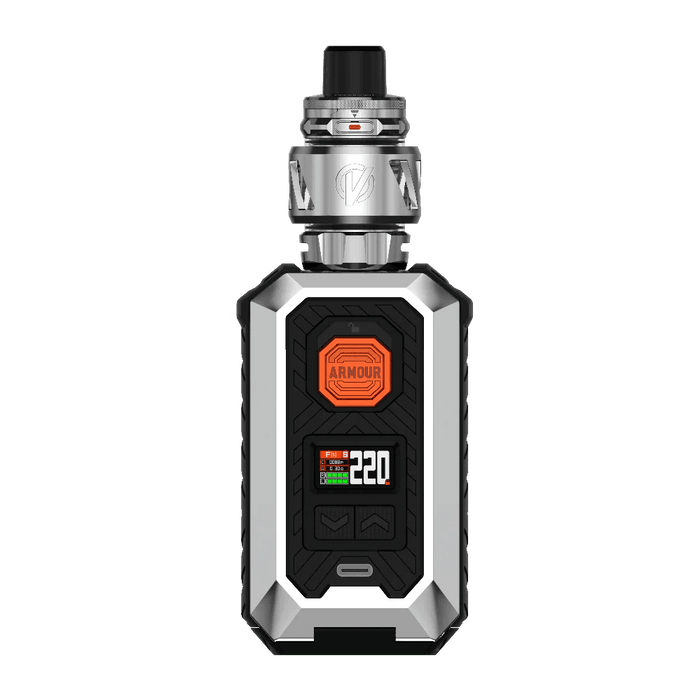

The Vaporesso Armour Max 220W Starter Kit is a dual-battery box mod built for people who want serious output and don't mind carrying the weight for it. Running two 21700 or 18650 batteries, it pushes up to 220W through the AXON chipset, which brings more than raw power: alongside standard wattage and full temperature control for nickel, titanium and stainless steel wire, you get F(t) Mode for custom power curves across a puff, Pulse Mode for a rapid on-off firing pattern that keeps flavor sharp without overheating the coil, and ECO Mode for stretching battery life. A 0.96" TFT color display keeps everything readable, and the Uni-Lock hinged bottom battery bay with one-key unlock makes swapping cells fast while holding them securely under load. The chassis pairs zinc alloy with TPU for real drop resistance. Paired with the included iTank and the GTi mesh coil platform — where Morph-Mesh construction and fluffier COREX cotton improve liquid delivery and heating evenness, raising vaporization efficiency by around 50% over the previous generation.
Which Tank Comes With It?
The Armour Max ships in two configurations. Check which one you're ordering.
| iTank 2 | iTank T | |
|---|---|---|
| Capacity | 8mL | 6mL |
| Airflow | Dual-slotted bottom | Top airflow |
| Fill System | Auto-open top fill | Top fill |
| Diameter | 25.5mm | 25.5mm |
| Leak Resistance | Standard | Improved — top airflow removes the main leak path |
Both are stainless steel, both use press-fit GTi coils, and both connect via threaded 510. The iTank T is the newer pairing and the better choice if leaking has been a problem for you before.
Key Features
- 5–220W Output Range
- Dual 21700 or 18650 Battery Configuration (batteries not included)
- AXON Chipset
- Five Modes — Wattage, F(t), Pulse, ECO and Temperature Control
- TC Wire Support — Nickel, Titanium and Stainless Steel
- 0.96" TFT Color Display
- Uni-Lock Hinged Bottom Battery Bay with One-Key Unlock
- Zinc Alloy + TPU Armoured Construction
- USB Type-C Charging
- Button-Fired
- Included iTank — 8mL (iTank 2) or 6mL (iTank T)
- GTi Mesh Coil Platform — Morph-Mesh structure, COREX cotton
- Press-Fit Coil Installation
- Threaded 510 Connection
- Two Coils Included — GTi 0.2Ω and 0.4Ω Mesh
- 18650 Adapter Sleeves Included
Specification Table
| Spec | Details |
|---|---|
| Brand | Vaporesso |
| Product | Armour Max 220W Starter Kit |
| Dimensions | 157 × 56.5 × 34mm |
| Output Power | 5–220W |
| Battery | Dual 21700 or 18650 (Not Included) |
| Chipset | AXON |
| Modes | Wattage, F(t), Pulse, ECO, TC |
| TC Wire Support | Nickel, Titanium, Stainless Steel |
| Display | 0.96" TFT Color Screen |
| Chassis Material | Zinc Alloy + TPU |
| Firing | Button-Triggered |
| Charging | USB Type-C |
| Tank | iTank 2 (8mL) or iTank T (6mL) |
| Tank Diameter | 25.5mm |
| Tank Material | Stainless Steel |
| Filling | Top Fill |
| Coil Compatibility | Vaporesso GTi Coil Platform (0.15Ω / 0.2Ω / 0.4Ω) |
| Coil Installation | Press-Fit |
| Connection | Threaded 510 |
| Draw Style | Direct-Lung (DTL) |
What's Included
- 1 × Vaporesso Armour Max Mod
- 1 × Vaporesso iTank 2 (8mL) or iTank T (6mL)
- 1 × GTi 0.2Ω Mesh Coil (60–75W, Pre-installed)
- 1 × GTi 0.4Ω Mesh Coil (50–60W)
- 1 × Extra Glass Tube
- 1 × Tank Protective Cover (Pre-installed)
- 2 × O-Rings
- 1 × Refilling Silicone Plug
- 2 × 18650 Battery Adapter Sleeves
- 1 × USB Type-C Cable
- 1 × User Manual & Warranty Card
FAQ
Q: Are batteries included?
A: No. You'll need two high-amp 21700 or 18650 batteries, sold separately. Always use a matched pair — same brand, same model, same age, charged together — and never mix cells in a dual-battery mod.
Q: Which tank does my kit come with?
A: Either the iTank 2 (8mL) or the iTank T (6mL), depending on the version. The iTank T is the newer pairing and uses top airflow, which significantly reduces leaking. Check the listing variant before ordering if you have a preference.
Q: What's the difference between the two included coils?
A: The GTi 0.2Ω runs at 60–75W with heavier vapor and a warmer draw. The GTi 0.4Ω runs at 50–60W, using less battery and e-liquid while keeping flavor clarity. The 0.2Ω comes pre-installed; start there and try the 0.4Ω if you want a cooler, longer-lasting setup.
Q: What are F(t) and Pulse modes?
A: F(t) lets you shape how power is delivered across a puff — ramping up hard at the start then easing off, for example. Pulse fires in rapid on-off bursts rather than continuously, which keeps the coil from over-saturating with heat and holds flavor steadier through longer draws.
Q: Can I use 18650 batteries instead of 21700?
A: Yes. The kit includes two adapter sleeves for exactly this. Note that 18650 cells hold less capacity, so runtime at high wattage will be noticeably shorter.
Q: What e-liquid should I use?
A: High-VG freebase e-liquid, typically 70VG/30PG, at low nicotine strength — usually 3mg or 6mg. Do not use nicotine salts or high-nicotine e-liquid in a sub-ohm setup at these wattages; nicotine delivery would be dangerously harsh.
Q: How do I change the coil?
A: GTi coils are press-fit. Unscrew the tank base, pull the old coil straight out, push the new one in until it seats, and check the O-rings before reassembling. Prime it with a few drops on the cotton, fill the tank, and let it stand ten minutes before firing.
Q: Is this a good first vape?
A: Not really. A 220W dual-battery mod with external cells requires understanding of battery safety, Ohm's law and sub-ohm vaping. If you're new, start with a pod system and move up once you're comfortable.
